Description
This is a multi-function inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package. The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.
Features
- Pure sine wave inverter
- Customizable status LED ring with RGB lights
- Touchable button with 4.3″ colored LCD
- Supports USB On-the-Go function
- Data log events stored in the inverter
- Built-in anti-dusk kit
- Reserved communication port for BMS
- Battery independent function
- Parallel operation up to 9 units
Product Overview
- RGB LED ring (refer to LCD Setting section for the details)
- LCD display
- Touchable Function keys
- PV connectors
- AC input connectors
- AC output connectors (Load connection)
- Battery connectors
- Current sharing port
- Parallel communication port
- Circuit breaker
- Power switch
- Dry contact
- USB port as USB communication port and USB function port
- RS-232 communication port
- BMS communication port: CAN, RS-485 or RS-232
Basic System Architecture The following illustration shows basic application for this unit. It also required the following devices to have a complete running system:
- Generator or Utility mains.
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power various appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioners.

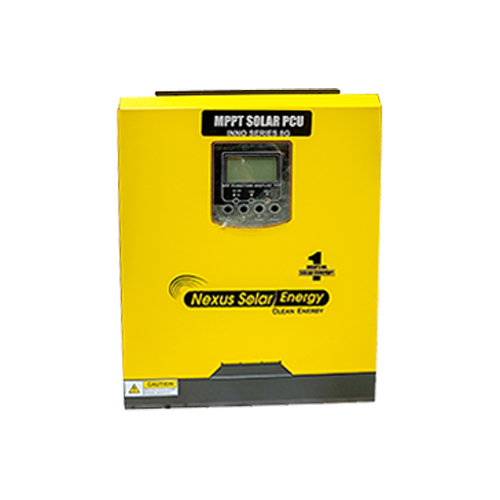

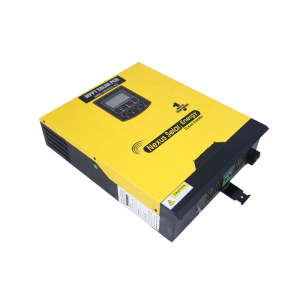

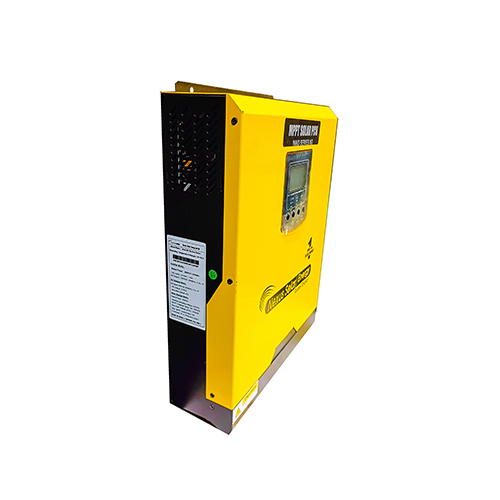

Nexus Inno8G 5kW-48V OFG Solar Inverter
| Rated Power | 5000 VA / 5000 W |
| Parallel Capability | No |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Capacity | 10000 VA for 5 secs |
| Efficiency (Peak) | 0.93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | < 50 W |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63VDC |
| Maximum Solar Charging Current | 120A |
| Maximum PV Array Power | 5000W |
| Solar Charger Type | MPPT |
| MPPT Range | 120 ~ 450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV Input Current | 27 A |
| Dimension, D x W x H (mm) | 100x300x400 |
| Net Weight (kgs) | 10 |
| Communication Interface | RS232/Dry-Contact/WiFi |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C – 50°C |
| Storage Temperature | -15°C – 60° |
