Description
Nexus Solar Energy INNO 8G 7.2kVA-48V Solar Inverter is designed to offer more customized options to customers along with robustness. It comes with wide MPPT range and has built-in dual MPPT controllers to offer 8kW PV capacity. This inverter comes with load sharing option between solar and grid and you can also use this without batteries. It has kwh meter inbuilt.
-
-
- High Power Output: With a robust 7.2kW capacity, the INNO 8G ensures ample power to meet your electricity demands, providing a reliable source of energy for your off-grid setup.
- 48V System Voltage: This inverter operates at 48V, optimizing efficiency and performance while accommodating a variety of solar panel configurations. The 48V system enhances energy conversion, making it suitable for a wide range of applications.
- Off-Grid Capability:Tailored for off-grid applications, the INNO 8G allows you to break free from conventional power sources, making it perfect for remote locations, cabins, and other off-grid installations.
- Advanced MPPT Technology:Equipped with Maximum Power Point Tracking (MPPT) technology, the INNO 8G optimizes solar power harvesting by continuously adjusting to extract maximum energy from your solar panels, even in varying environmental conditions.
- User-Friendly LCD Display: The built-in LCD display provides real-time monitoring of system status, battery voltage, and power output. This user-friendly interface allows for easy setup and monitoring of your off-grid solar system.
- Durable and Efficient Design: Constructed with durability in mind, the INNO 8G features a sturdy design that withstands harsh environmental conditions. Its efficient operation minimizes energy loss, maximizing the overall performance of your off-grid solar power system.
-
Features
-
- Pure Sine Wave solar inverter with up-to 93% peak efficiency
- Setting Timer available for load priority and battery charging
- Selectable maximum discharge current based on battery bank
- Built in Wi-Fi monitoring via mobile app
- Communication port for BMS – RS485
- LED bar with RGB Lights to indicate status
- Compatible with Lead Acid, Lithium-Ion and LiFePO4 Batteries
- Can be used without batteries
- Connect up-to 6 inverters in parallel in single phase & three phase

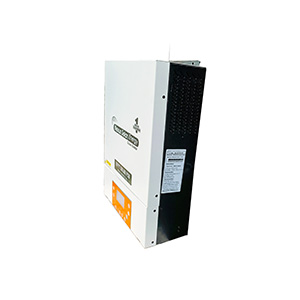

INNO 8G 7.2kW 48V Off Grid Solar Inverter
| Model | INNO 8G 7.2KW |
| RATED POWER | 7200VA/7200W |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode) at 50% Load |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Capacity | 15000VA for 5secs |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For UPS Mode); 20 ms (For Appliance Mode) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66VDC |
| Maximum Solar Charging Current | 80A |
| Maximum AC Charging Current | 80A |
| Maximum PV Array Power | 8000W (2 x 4000W) |
| Solar Charger Type | MPPT |
| MPPT Range | 500 VDC |
| Maximum Input Charge Current | 18A*2 (Max 30A) |
| Dimension, D x W x H (mm) | 143 x 420 x 531 mm (D x W x H) |
| Net Weight (kgs) | 18.4 |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C – 50°C |
| Storage Temperature | -15°C – 60°C |
* Download Data Specification : Click Now
*Product specifications are subject to change without further notice
