Description
The Nexus solar energy 550Wp Mono PERC Half-Cut Solar Panel 24V is a high-performance solar panel that is designed to deliver maximum power output with greater efficiency. This solar panel is made of monocrystalline solar cells that are highly efficient at converting sunlight into electricity. It has a power output of 550 watts, making it one of the highest power-rated solar panels available in the market today. he PERC (Passivated Emitter and Rear Cell) technology used in this solar panel allows for higher light absorption and conversion efficiency. The half-cut cell design reduces the resistance and improves the overall efficiency of the solar panel. The 24V voltage rating of this solar panel makes it compatible with most standard solar systems.
Features
- Mono PERC half cut cells types Panel.
- Capacity – 550W, 24V
- Voltage: Voltage at Max Power (Vmax) – 42.12V, Open Circuit Voltage (Voc) – 49.73V
- Current: Current at Max Power (Imax) – 13.09A, Short Circuit Current (isc) – 14.011A
- 30 years performance warranty.
- BIS certified as per IS/IEC standards which is mandatory for all solar panels.
- Best in Class conversion efficiency
- Half Cut Solar Cell Technology
- Better Shading Tolerance
- Excellent Hot Spot Performance
- Less Micro Crack Impacts
- Lower Resistive Losses
Conclusion Excellent Low light performance in low visibility in clouds, evening, and morning.

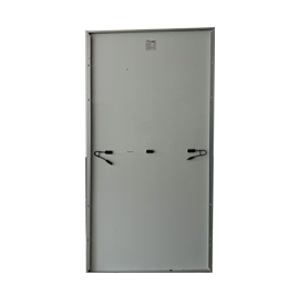

Nexus 550Wp Mono PERC Half-Cut Solar Panel 24V
| Model | 550Wp |
| Model area(cm2) | 25832.5 |
| Irradiance(mW/cm2) | 100.23 |
| Vmp(V) | 42.1266 |
| Voc(V) | 49.7374 |
| F.F. | 79.14 |
| Ambient temp | 25 |
| Imp(A) | 13.0925 |
| Isc(A) | 14.0119 |
| Pmp(A) | 551.5432 |
| Module eff.(%) | 21.3 |
| Solar Cells Per Module (units) | 144 |
| Monocrystalline Solar Cell Size(mm) | 91×182 |
| Module Size(LxWxT) mm | 2280x1134x35 |
| Weight | 27.10kg |
