Description
The 160Ah 12.8V Lithium Solar Battery is a robust and efficient energy storage solution designed specifically for solar power systems. With a capacity of 160 ampere-hours (Ah), this battery can store a significant amount of energy generated from solar panels during daylight hours, allowing for reliable power supply even when sunlight is unavailable.
key Features:
High Energy Density: Lithium-ion technology provides a high energy density, allowing for more energy storage in a compact and lightweight package compared to traditional lead-acid batteries.
Long Cycle Life: Lithium batteries typically have a longer cycle life compared to lead-acid batteries, meaning they can withstand more charge-discharge cycles without significant degradation in performance.
Fast Charging: Lithium batteries can be charged quickly, making them well-suited for solar applications where intermittent charging may occur throughout the day.
Deep Discharge Capability: This battery can be safely discharged to a greater depth without damaging its lifespan, maximizing the available energy storage capacity.
Built-in Battery Management System (BMS): The integrated BMS ensures safe operation by monitoring voltage, temperature, and current, protecting the battery from overcharging, over-discharging, and overheating.
Environmentally Friendly: Lithium batteries are more environmentally friendly than lead-acid batteries due to their lower self-discharge rate, longer lifespan, and recyclability.

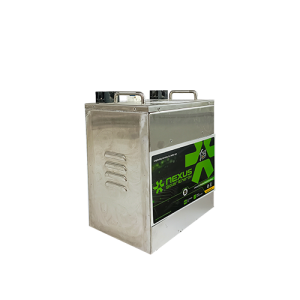

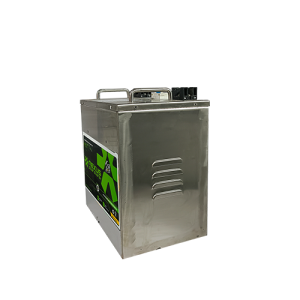

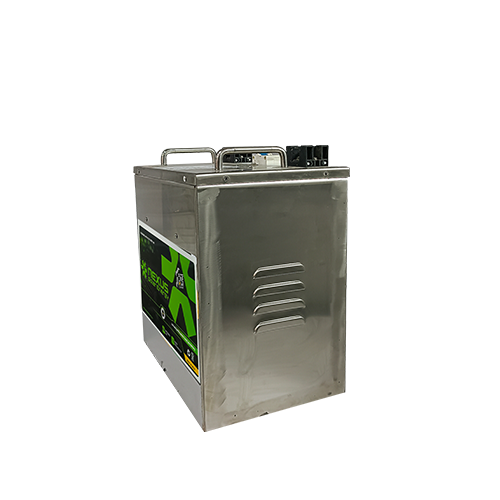

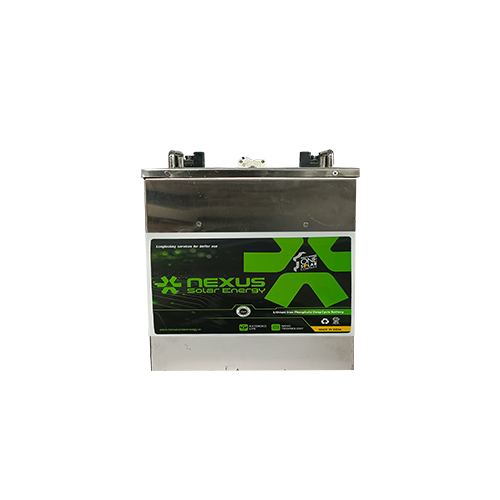

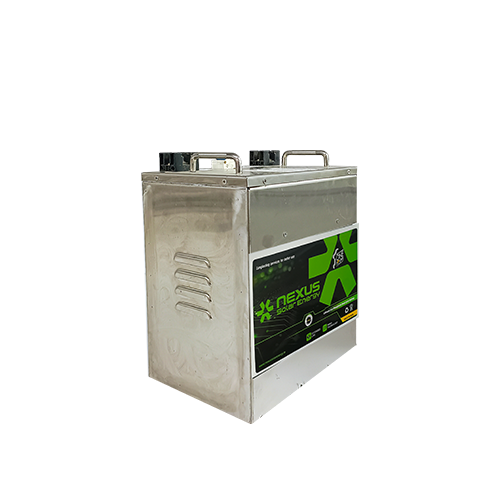

160Ah 12.8V Lithium Solar Battery
| Description | Particulars |
| Brand | Nexus Solar Energy |
| Rated Voltage | 12.8 |
| Rated Capacity | 160Ah(C5,0.2C to 40.5V @25’C |
| Discharge Current(Max.) | 25A |
| Discharge End Voltage | 10.8V |
| Charge Current(Recomm.) | 20A |
| Charge Current(Max.)) | 25A |
| Charge Voltage | 14.2 |
| Dimension(WxDxH)mm | 300x210x340 |
| Typical Weight | 20.0Kg |
| Terminal Size | M8(Screw Size) |
| Breaker | Standard |
| Maintenance Interface | Standard |
| Temperature Range | Discharge(-20 to 50’C), Charge(0 to +60’C), Storage(0 to 40’C) |
| Temperature Recommendation | Discharge(+15 to +35’C), Charge(+15 to +35’C), Storage(+15 to +35’C) |
| Humidity | 5 to 95% |
- Download Data Specification : Click Now
- Product specifications are subject to change without further notice
